Self-primining Drag Pump

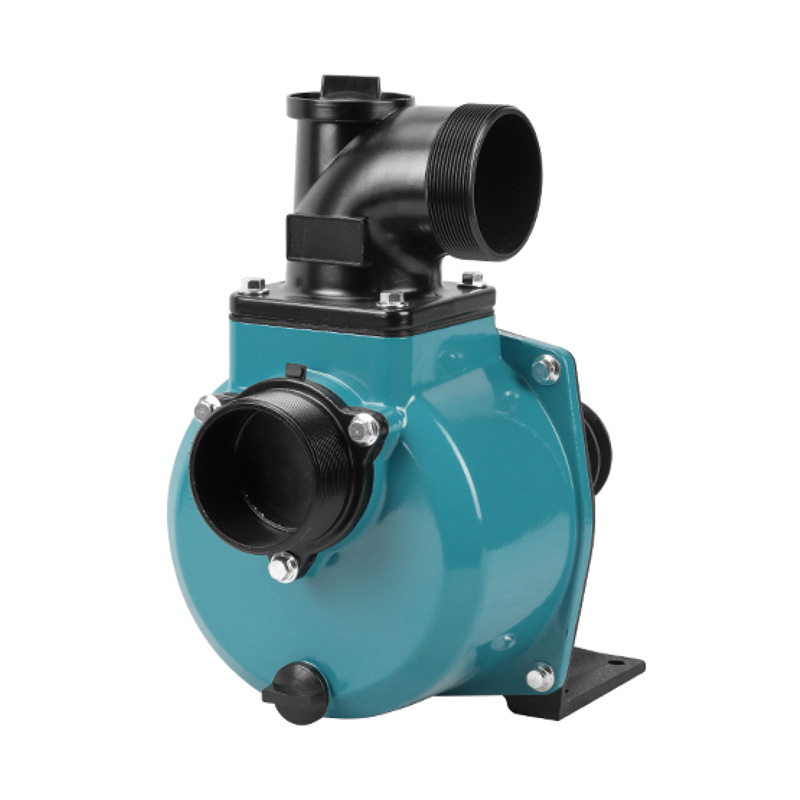

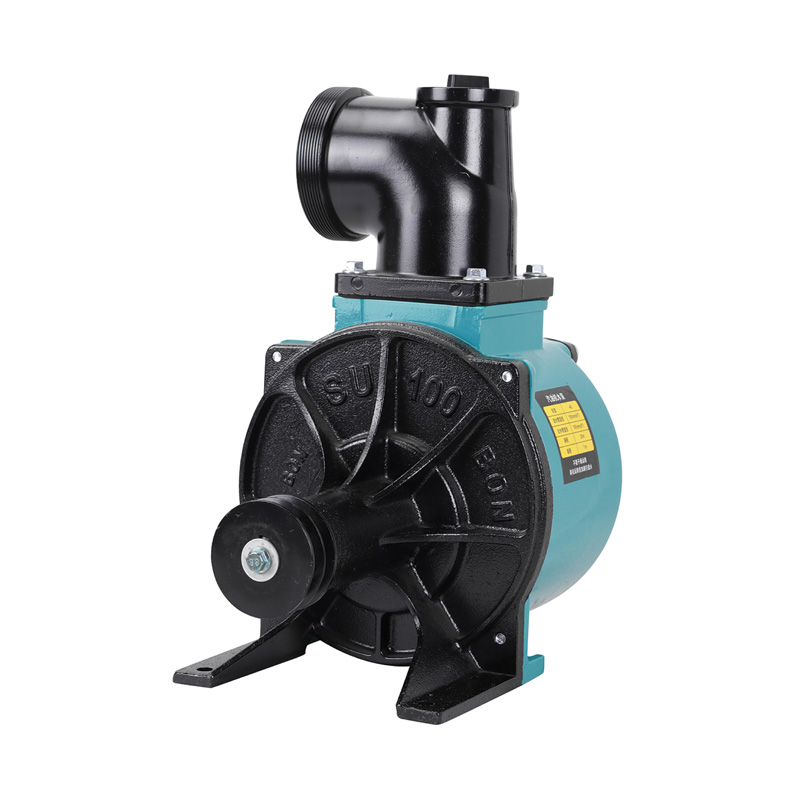

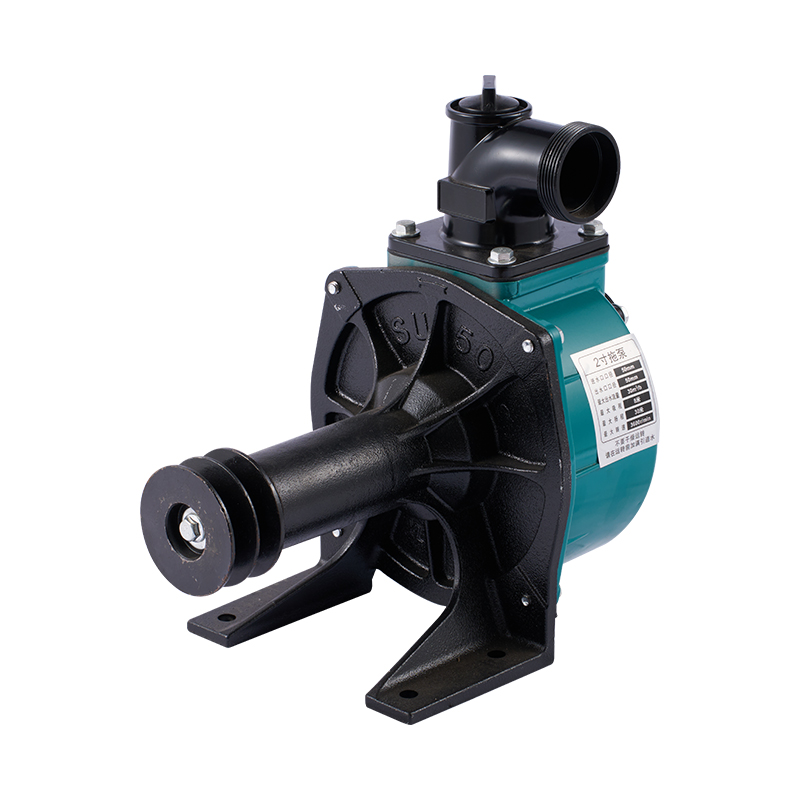

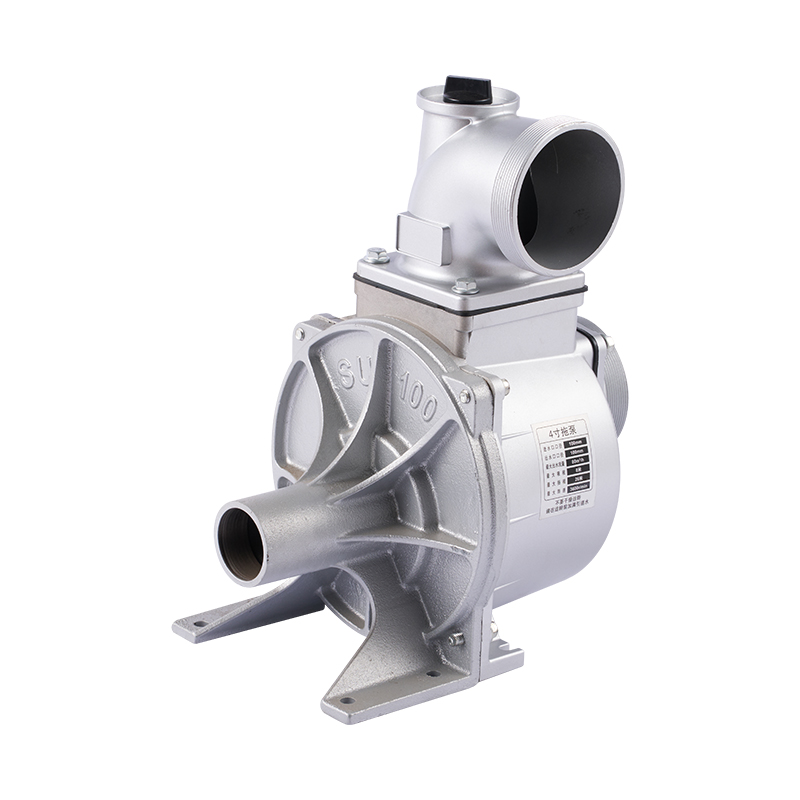

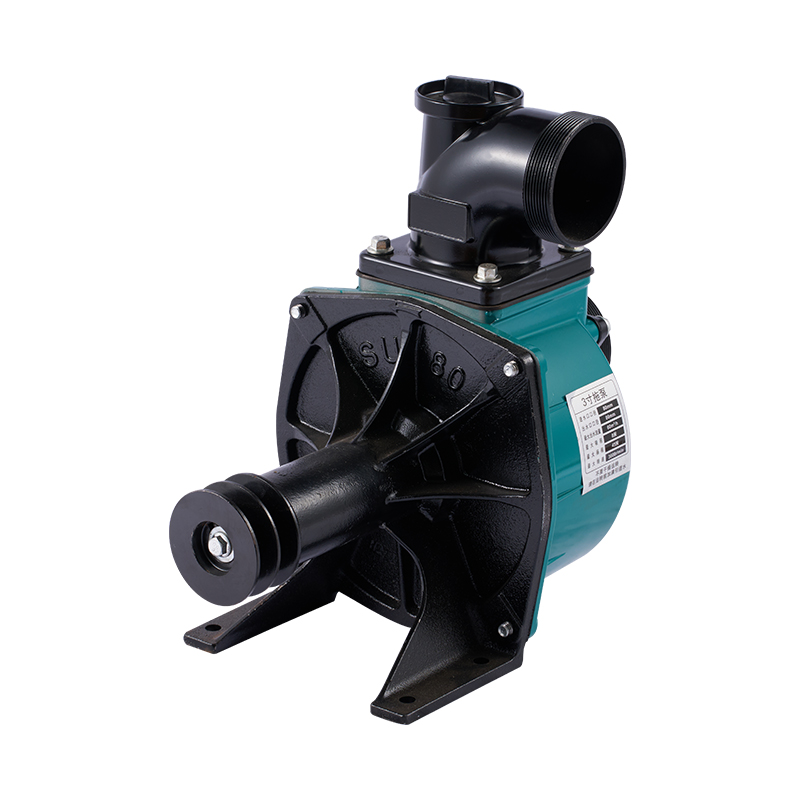

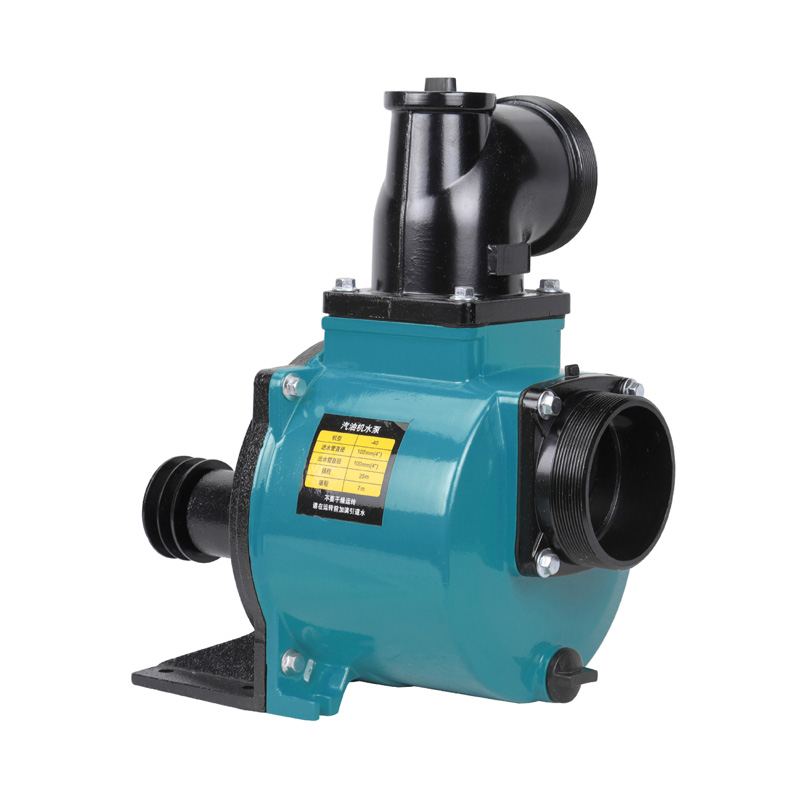

2/3/4 Inch Portable Self-priming Drag Pump For Irrigation

The 2/3/4 Inch Portable Self-priming Drag Pump is a versatile and efficient solution for various irrigation needs. Available in three sizes—2 inch, 3 inch, and 4 inch—this pump is designed to handle different flow rates and head requirements. The 2-inch model offers a flow rate of 25 cubic meters per hour, with a suction lift of 8 meters and a head of 30 meters, making it ideal for small to medium-sized irrigation tasks. Weighing just 9 kg, it is highly portable and easy to maneuver. The 3-inch model increases the flow rate to 50 cubic meters per hour, with a slightly reduced head of 23 meters, and weighs 11 kg. For larger irrigation projects, the 4-inch model provides a robust flow rate of 75 cubic meters per hour, with a head of 17 meters and a weight of approximately 14 kg. All models feature an 8-meter suction lift, ensuring reliable performance even in challenging conditions. These pumps are constructed with durability in mind, making them suitable for a wide range of agricultural and irrigation applications.

  • Description
Model 2 inch pump head 3-inch pump head 4-inch pump head
Water Inlet Diameter 50(mm) 80(mm) 100(mm)
Outlet Diameter 50(mm) 80(mm) 100(mm)
Maximum Water Flow Rate 30m³/h 60m³/h 80m³/h
Maximum Suction Lift 8 meters 8 meters 8 meters
Maximum Lift 30 meters 45 meters 26 meters
Speed 3600r/min 3600r/min 3600r/min

Information Large flow self-priming tow pump details added

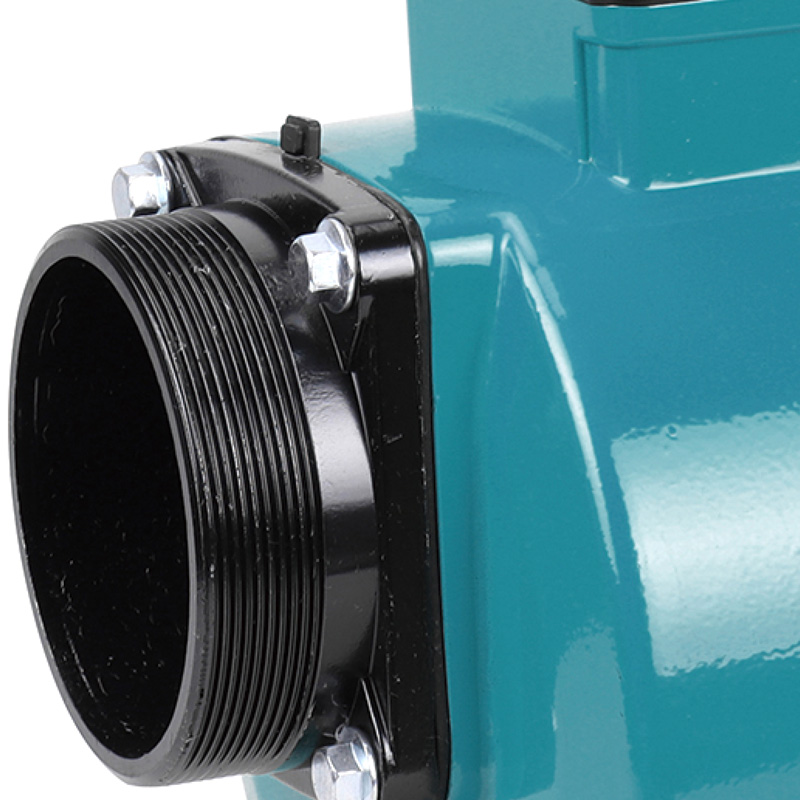

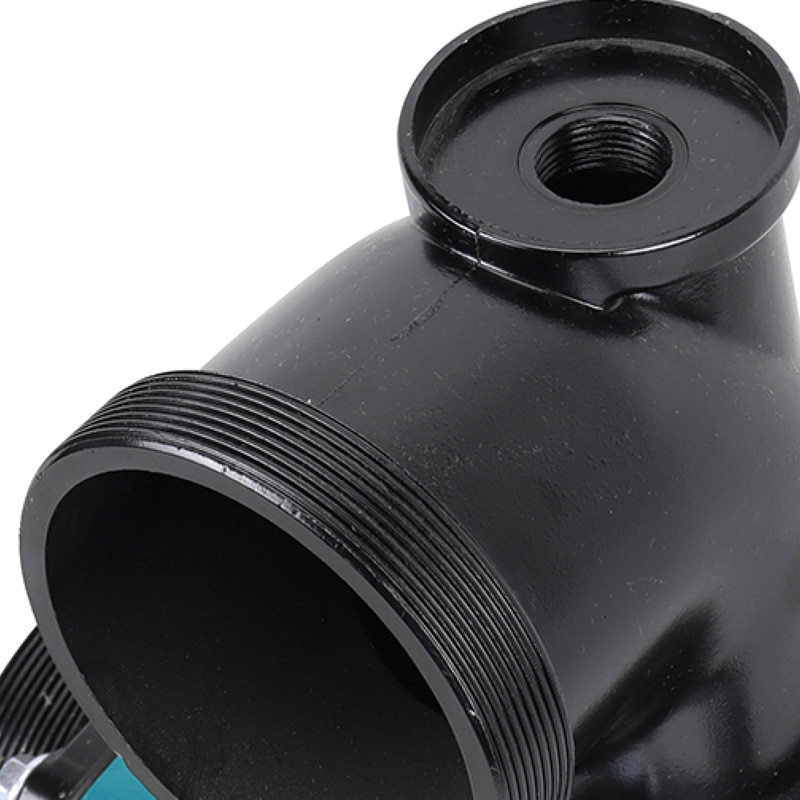

Pump head details Aluminum alloy material, self-priming, single stage centrifugal pump/double impeller blade
